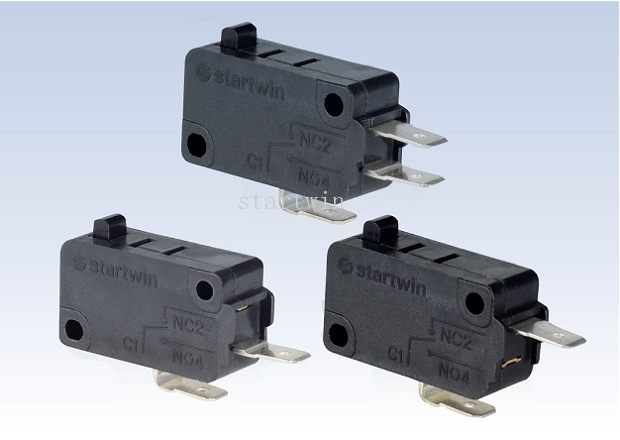

Name：SW12TA-021C.P.Z- Series Micro Switch

Model：SW12TA-021C.P.Z- Series Micro Switch

Category：big size micro switches

FEATURES：

SPDT (Form C) subminiature snap-action switch

3 terminals

Positive opening operation

Wiping action

FEATURES:

Mechanical life：min.1 x 106 cycles

Good feeling and more actuators and more terminals are applied

Description Parameter

SPECIFICATION

Mechanical life: 2,000,000 cycles min；

Contact Rating:	16 Amps @ 125/250 VAC; CUL, UL 50,000 cycles; ENEC 50,000 cycles
	26 Amps @ 125 /250VAC ; CUL,UL 50,000 cycles;ENEC 50,000 cycles

Insulation Resistance:＞100MΩ DC500V；
Withstand Voltage:AC1500V 1 minute；
Contact Resistance:＜100mΩ；
Operating Temper.:-25℃ to 125℃；

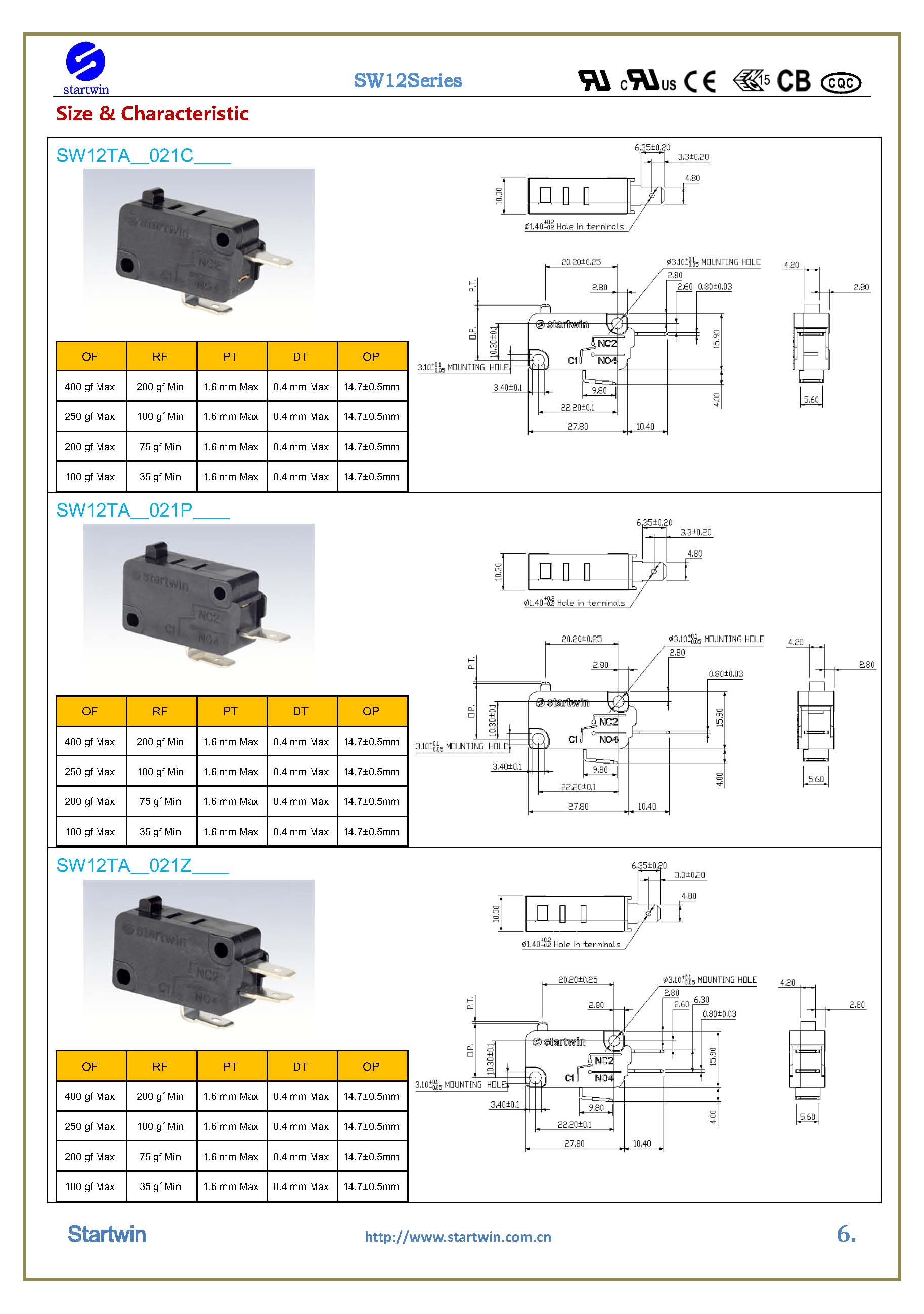

Operating Force:See Chart
Hand Soldering.:Use a soldering iron of 30 watts, controlled at 380℃
approximately 3 seconds while applying solder

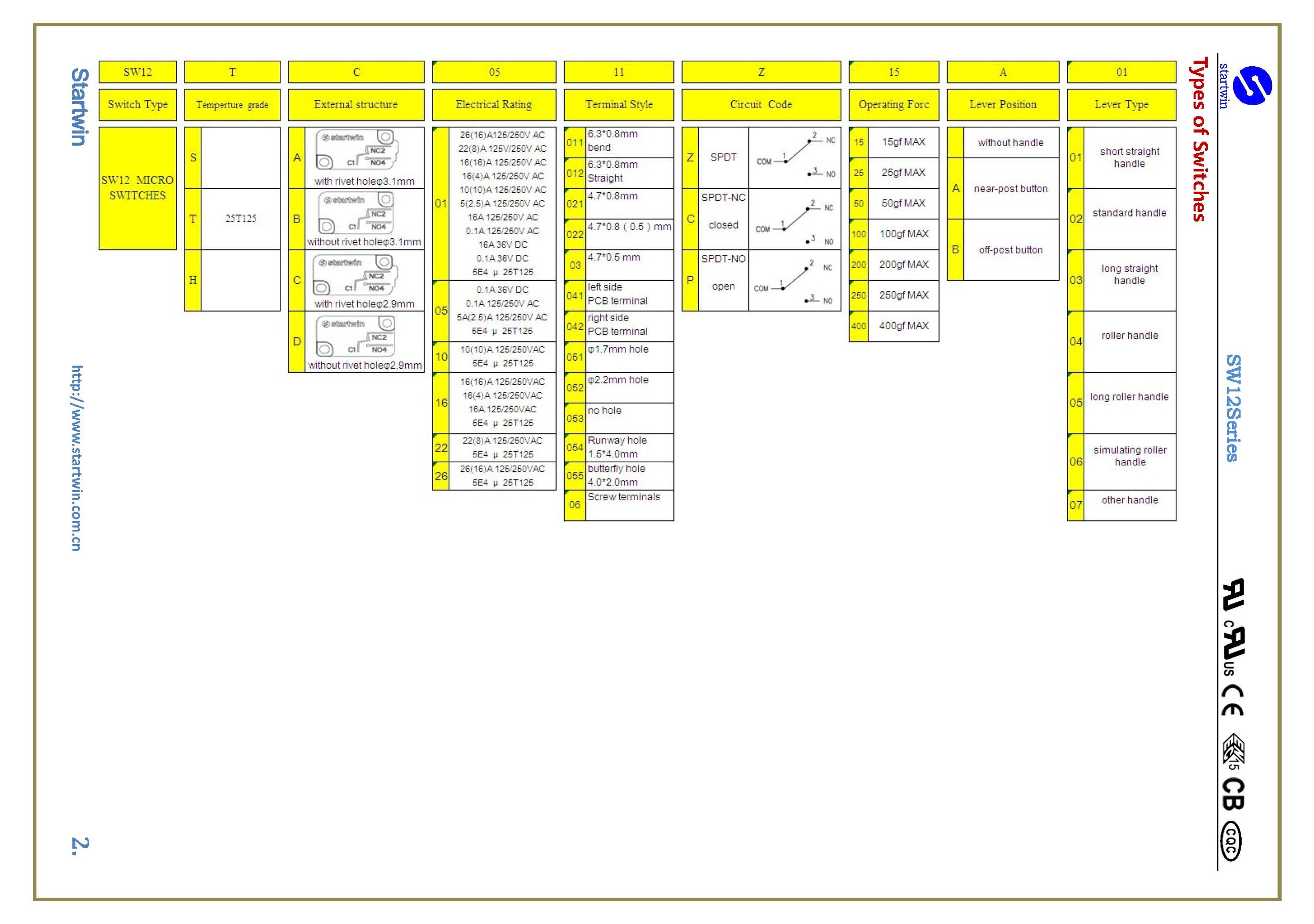

Types of Switches

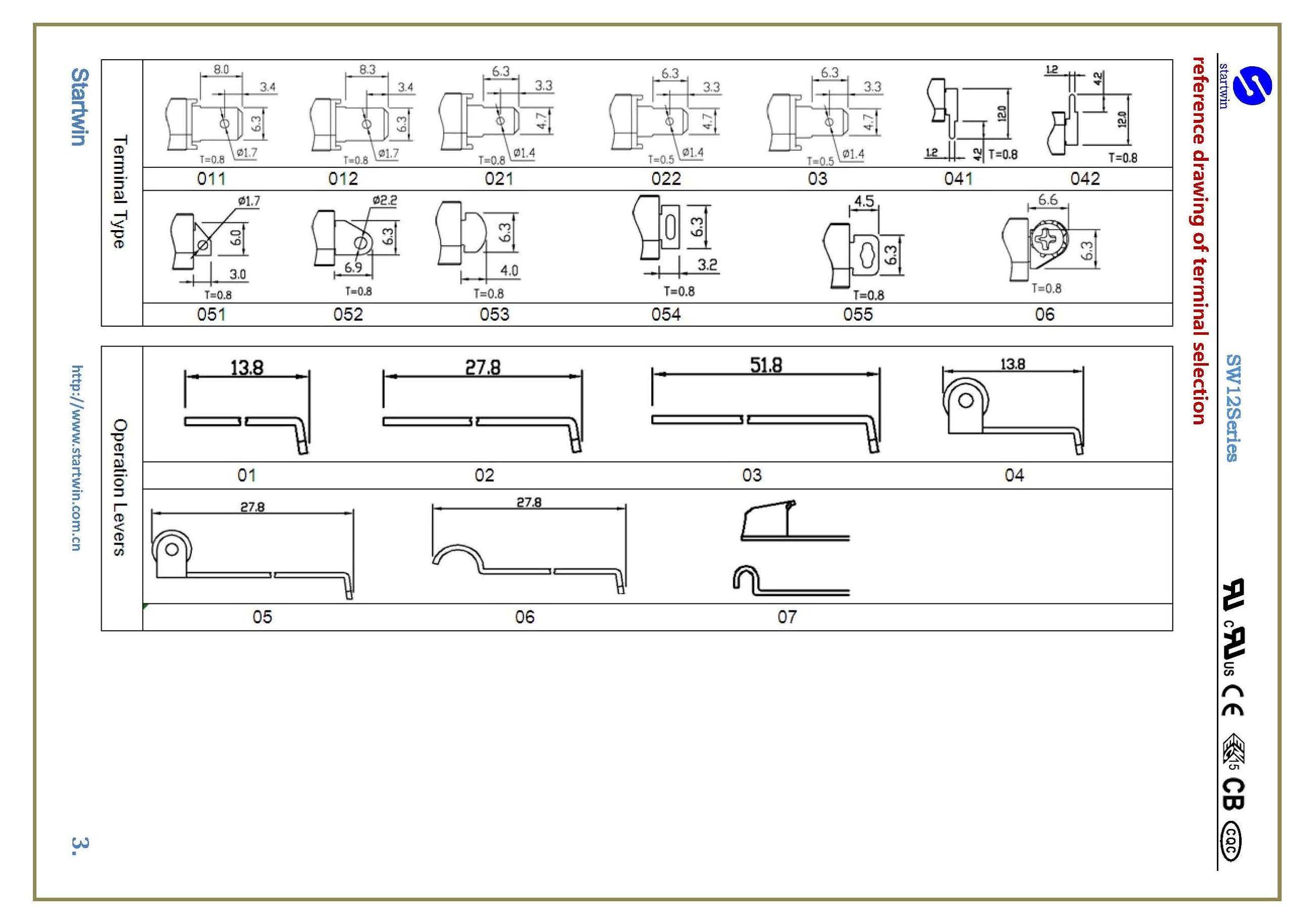

Reference drawing of terminal selection
