SPECIFICATION
Mechanical life: 2,000,000 cycles min；
Contact Rating: 16 Amps @ 125/250 VAC; CUL, UL 50,000 cycles; ENEC 50,000 cycles
                             26 Amps @ 125 /250VAC ; CUL,UL 50,000 cycles;ENEC 50,000 cyclesInsulation Resistance:＞100MΩ DC500V；
Withstand Voltage:AC1500V 1 minute；
Contact Resistance:＜100mΩ；
Operating Temper.:-25℃ to 125℃；

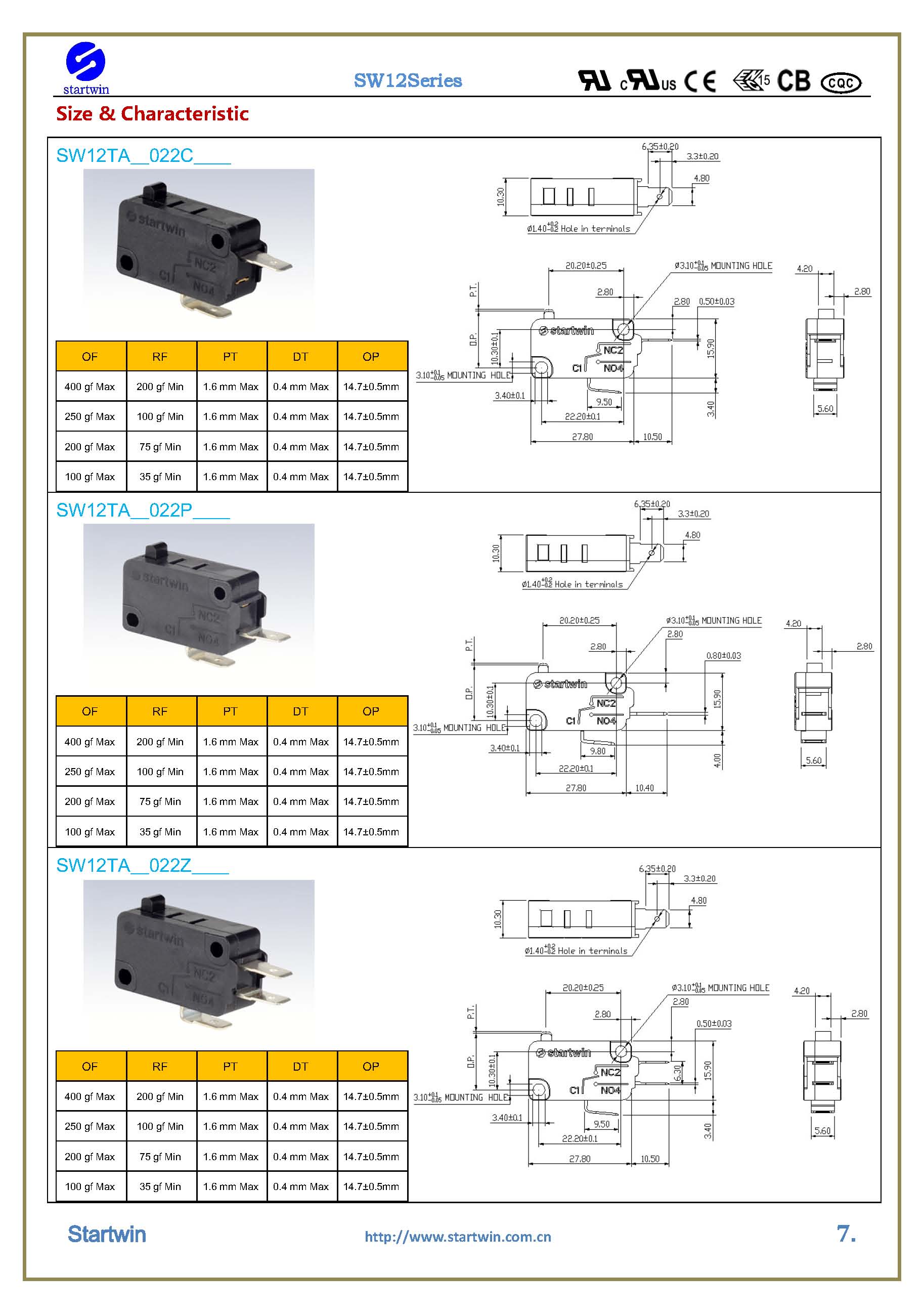

Operating Force:See Chart
Hand Soldering.:Use a soldering iron of 30 watts, controlled at 380℃
                              approximately 3 seconds while applying solder
