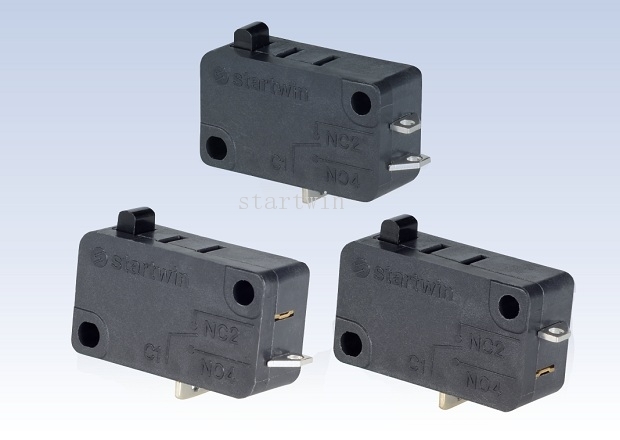

Name：SW12TB-051C.P.Z- Series Micro Switch

Model：SW12TB-051C.P.Z- series

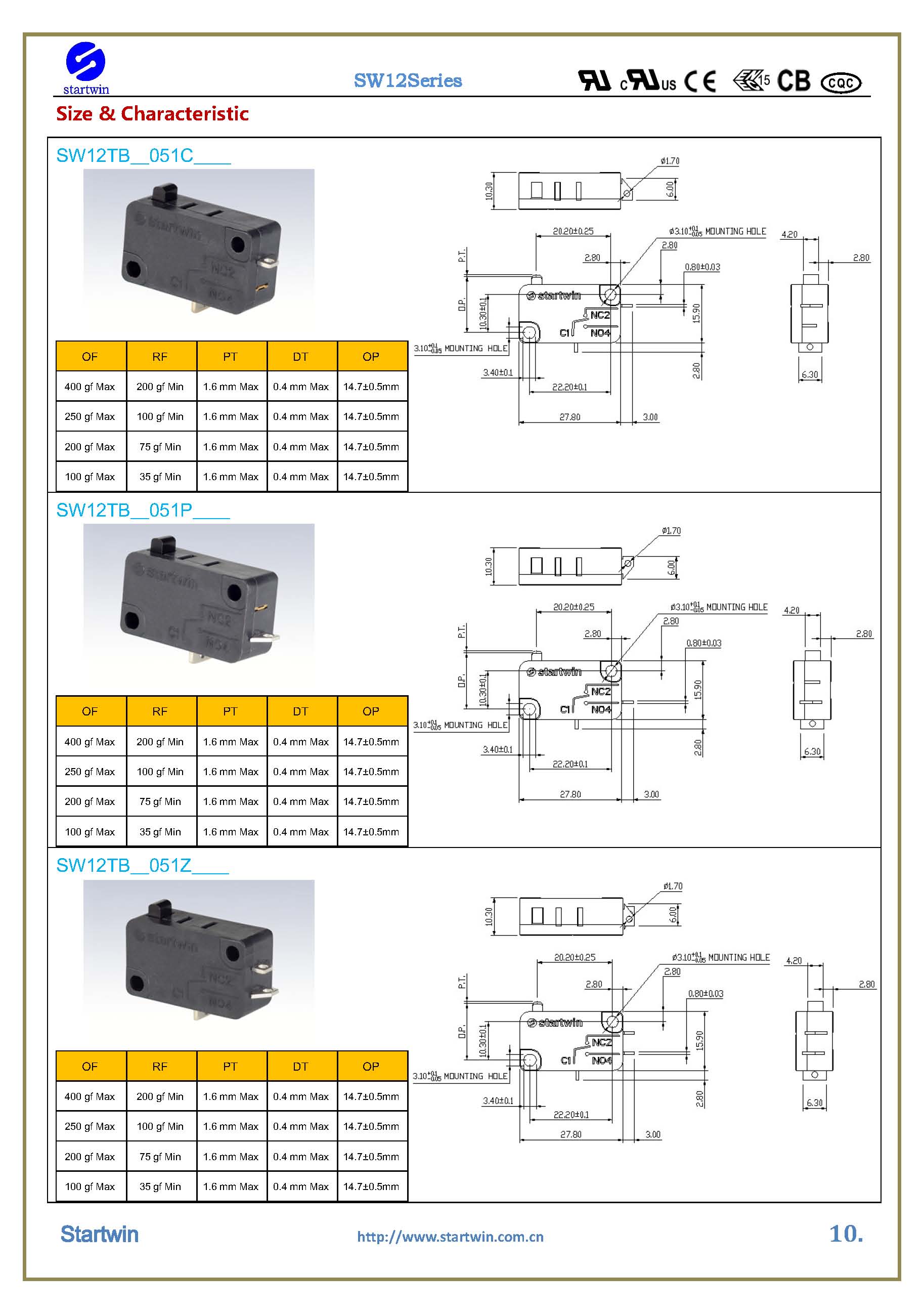

FEATURES：
(Rating):10A/16A/22A/26A/30A250VAC/125VAC

（OF）:100gf-400gf Max

（RF）：35gf-200gf min

（DT）：0.4mm MAX

Description Parameter

Ratings:	16(4)A 125/250VAC 1/2HP 125VAC; 3/4HP 250VAC 0.4A/125VDC; 0.2A/250VDC 10.1A 125VAC Tungsten
Electrical Life:	300,000 cycles min.
Operating Temp.:	25T85; 25T125
Operating Forces:	15gf ~ 400gf
Safety Approvals:	UL, cUL, ENEC, CE/CQC,ROHS

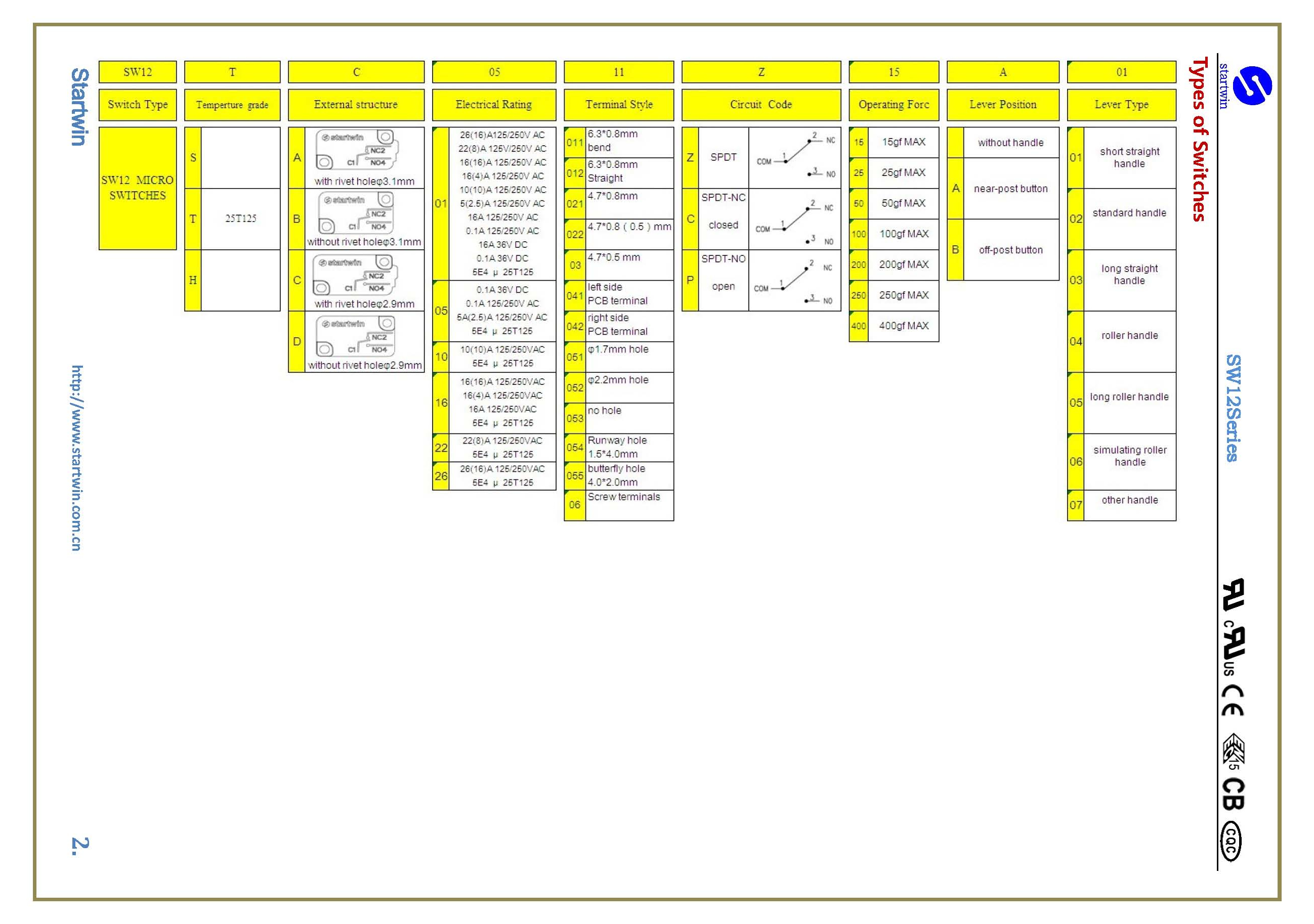

Types of Switches

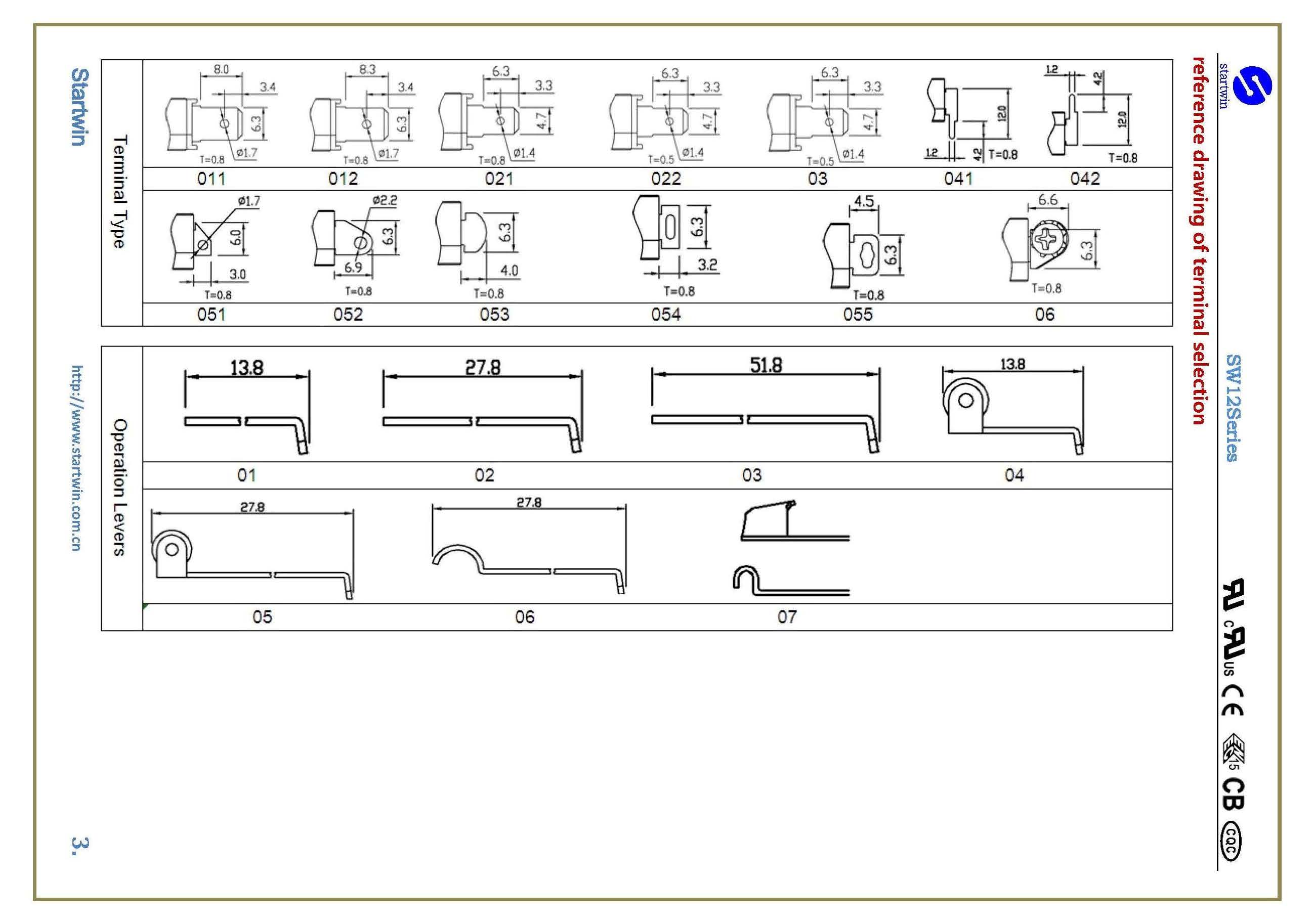

Reference drawing of terminal selection
