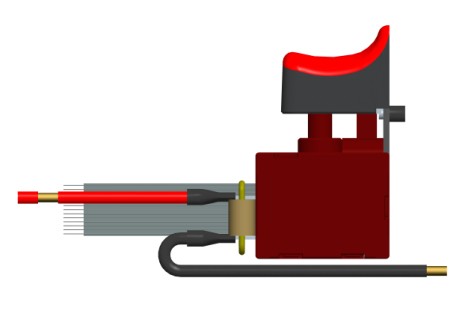

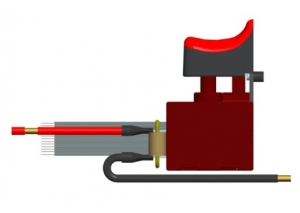

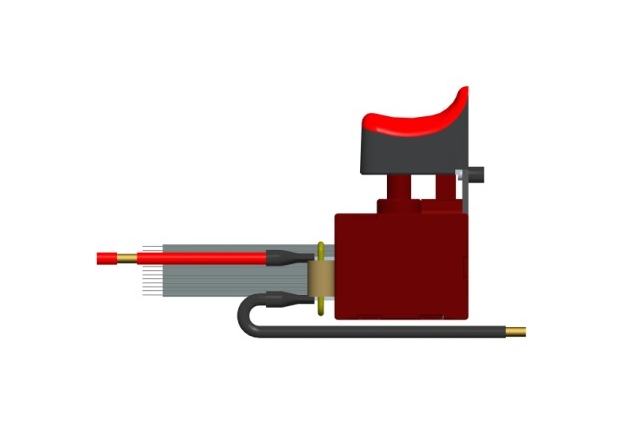

Speed regulating switch of DC brushless motor

Brushless motor control circuit, reducing the space and convenient for design and build-in.

Dedicated chip for brushless motor of electrical tool, high reliability and anti-interference.

Working voltage DC 5V-40V

Strong drive capability: 600mA output.

Built-in booster, voltage following circuit automatically, ensuring the safe and stable work of MOS.

Perfect over current protection: hardware and software.

Protective current values can be set according to different motors.

Torque regulating terminal: constant current output.

SPECIFICATION:

RATING :DC 42V 25A
INSULATION RESISTANCE :DC 500V 100MΩ OR MORE
CONTACT RESISTANCE :DC 2-4V 1A 20mΩ OR LESS
WITHSTAND VOLTAGE :AC 1500V FOR 1 Min
AMBIENT TEMPERATURE :-25℃TO 85℃
ELECTRICAL LIFE :500,000 CYCLES
