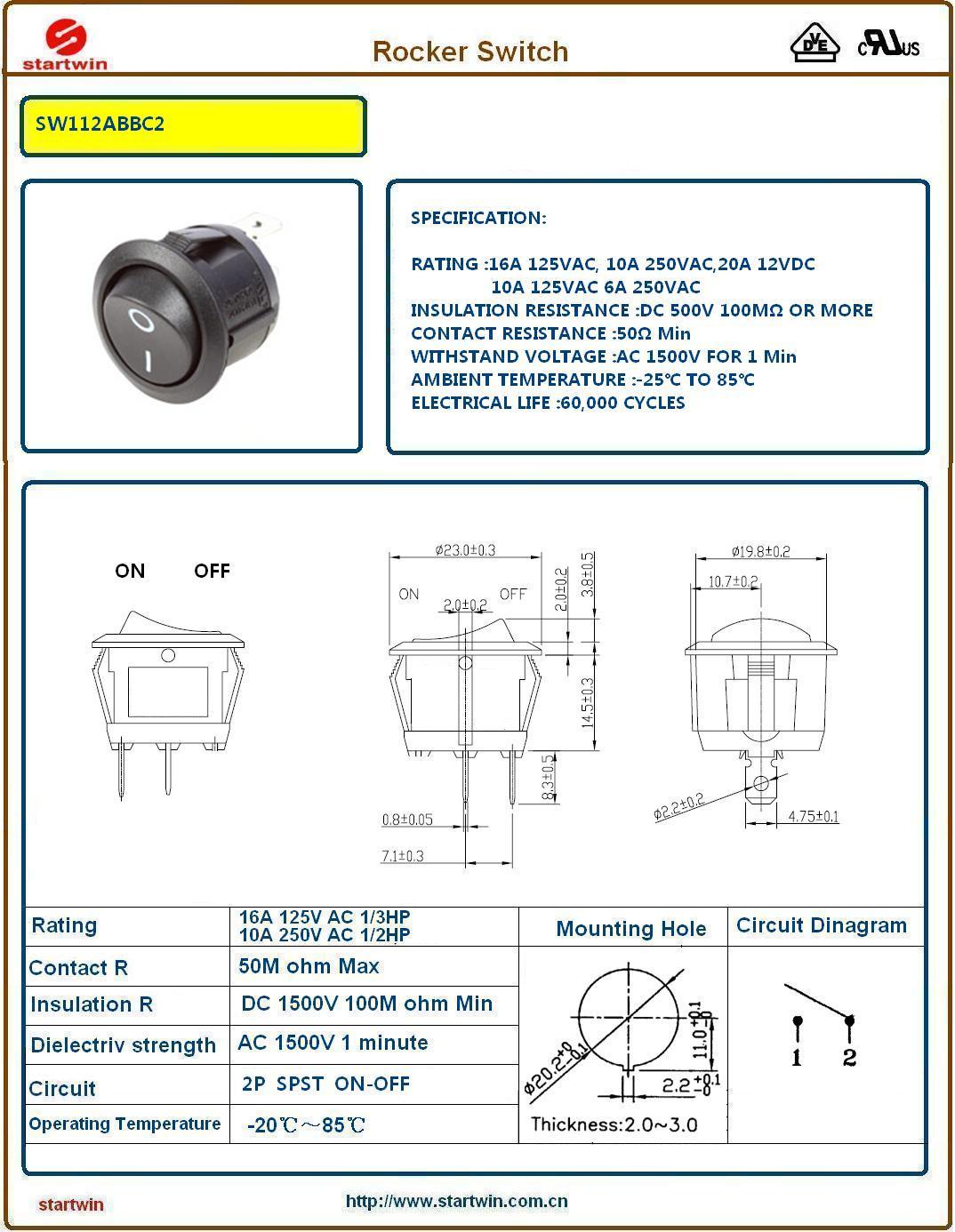

SPECIFICATION:
RATING :16A 125VAC, 10A 250VAC,20A 12VDC
10A 125VAC 6A 250VAC
INSULATION RESISTANCE :DC 500V 100MΩ OR MORE
CONTACT RESISTANCE :50Ω Min
WITHSTAND VOLTAGE :AC 1500V FOR 1 Min
AMBIENT TEMPERATURE :-25℃ TO 85℃
ELECTRICAL LIFE :60,000 CYCLES
