SPECIFICATION

    Mechanical life: 2,000,000 cycles min；
    Contact Rating:16 Amps @ 125/250 VAC; CUL, UL 50,000 cycles; ENEC 50,000 cycles
                                    26 Amps @ 125 /250VAC ; CUL,UL 50,000 cycles;ENEC 50,000 cycles
    Insulation Resistance:＞100MΩ DC500V；
    Withstand Voltage:AC1500V 1 minute；
    Contact Resistance:＜100mΩ；
    Operating Temper.:-25℃ to 125℃；

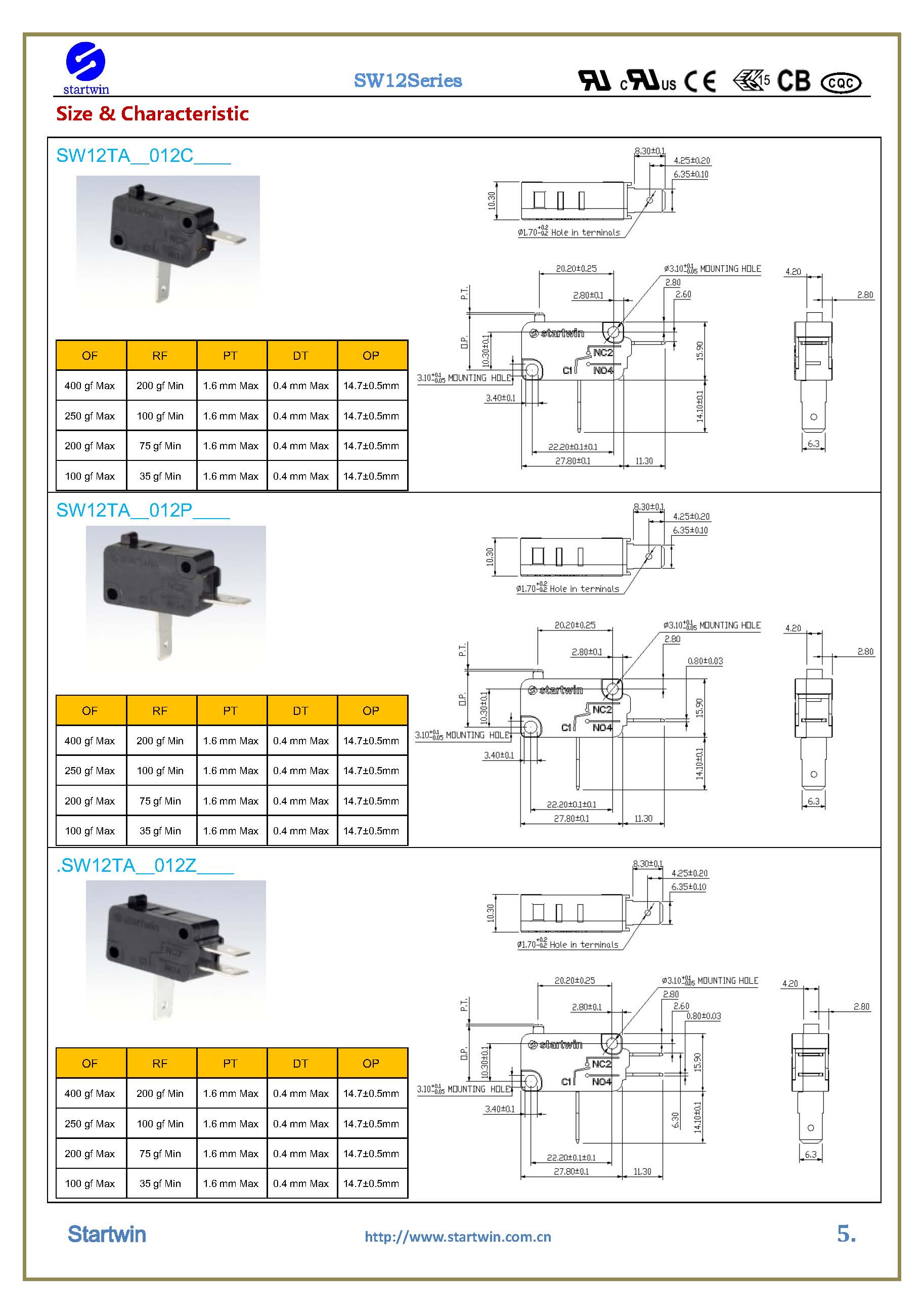

    Operating Force:See Chart
    Hand Soldering.:Use a soldering iron of 30 watts, controlled at 380℃
     approximately 3 seconds while applying solder
