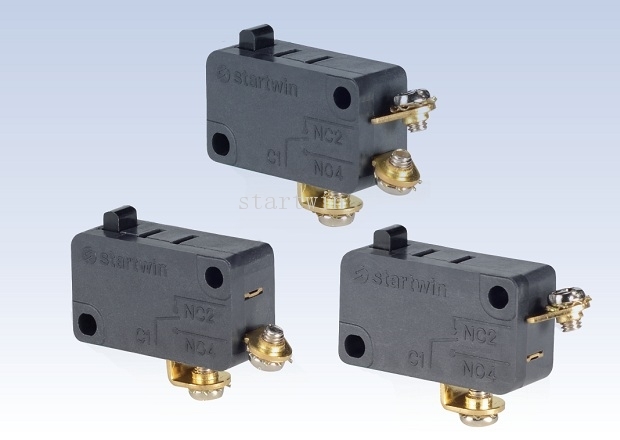

Name：SW12TB-06C.P.Z- Series Micro Switch

Model：SW12TB-06C.P.Z- Series Micro Switch

FEATURES：

Rating):10A/16A/22A/26A/30A250VAC/125VAC
(OF):15gf-100gf-400gf Max
(RF):2gf-35gf-200gf min
(DT):0.4mm MAX
(Electrical Life):300000Cycles
(OPerating Temperature):-25～+125℃

Description Parameter

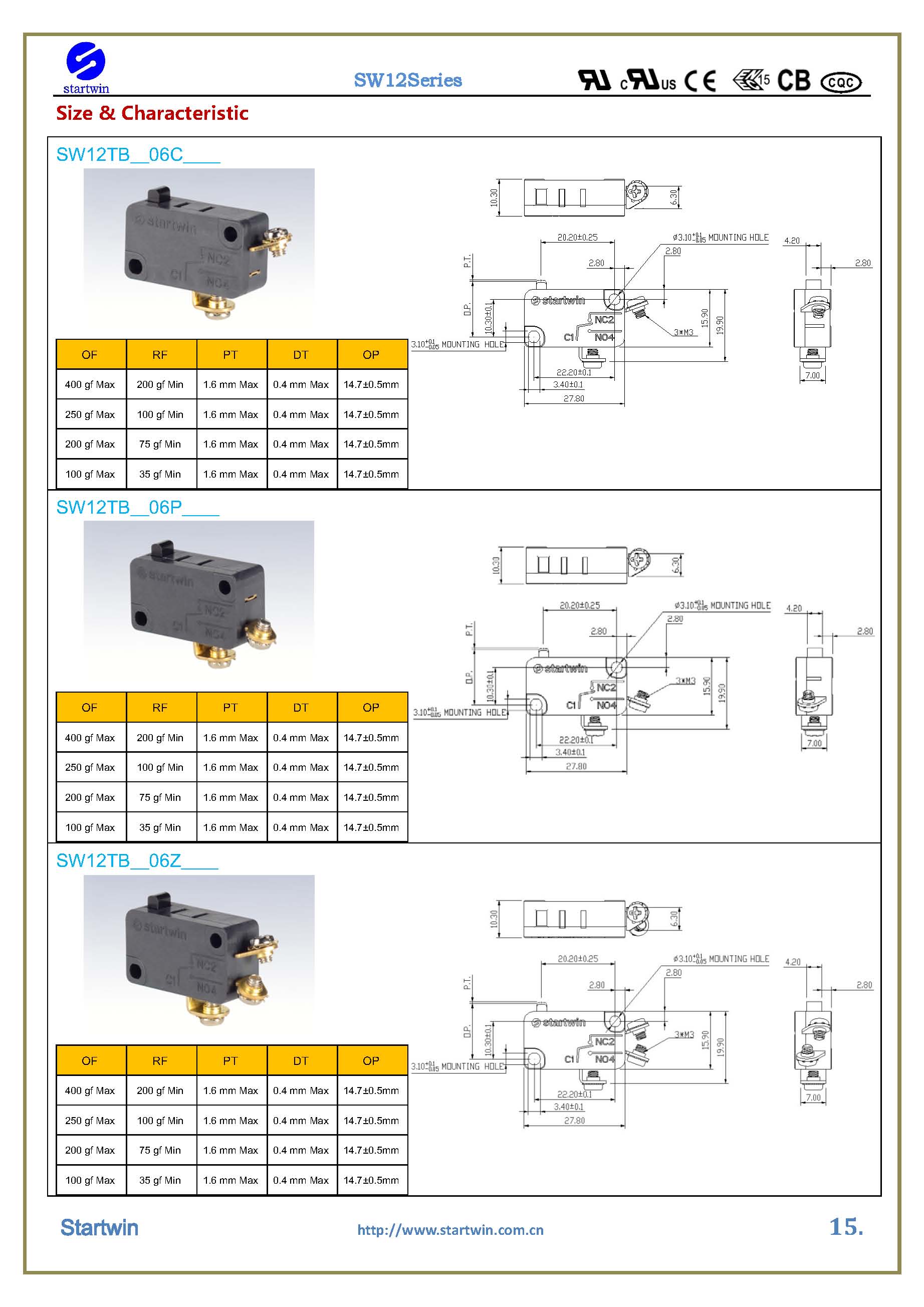

SPECIFICATION
Mechanical life: 2,000,000 cycles min；
Contact Rating:16 Amps @ 125/250 VAC; CUL, UL 50,000 cycles; ENEC 50,000 cycles
26 Amps @ 125 /250VAC ; CUL,UL 50,000 cycles;ENEC 50,000 cycles
Insulation Resistance:＞100MΩ DC500V；
Withstand Voltage:AC1500V 1 minute；
Contact Resistance:＜100mΩ；
Operating Temper.:-25℃ to 125℃；
Operating Force:See Chart
Hand Soldering.:Use a soldering iron of 30 watts, controlled at 380℃
approximately 3 seconds while applying solder

Types of Switches

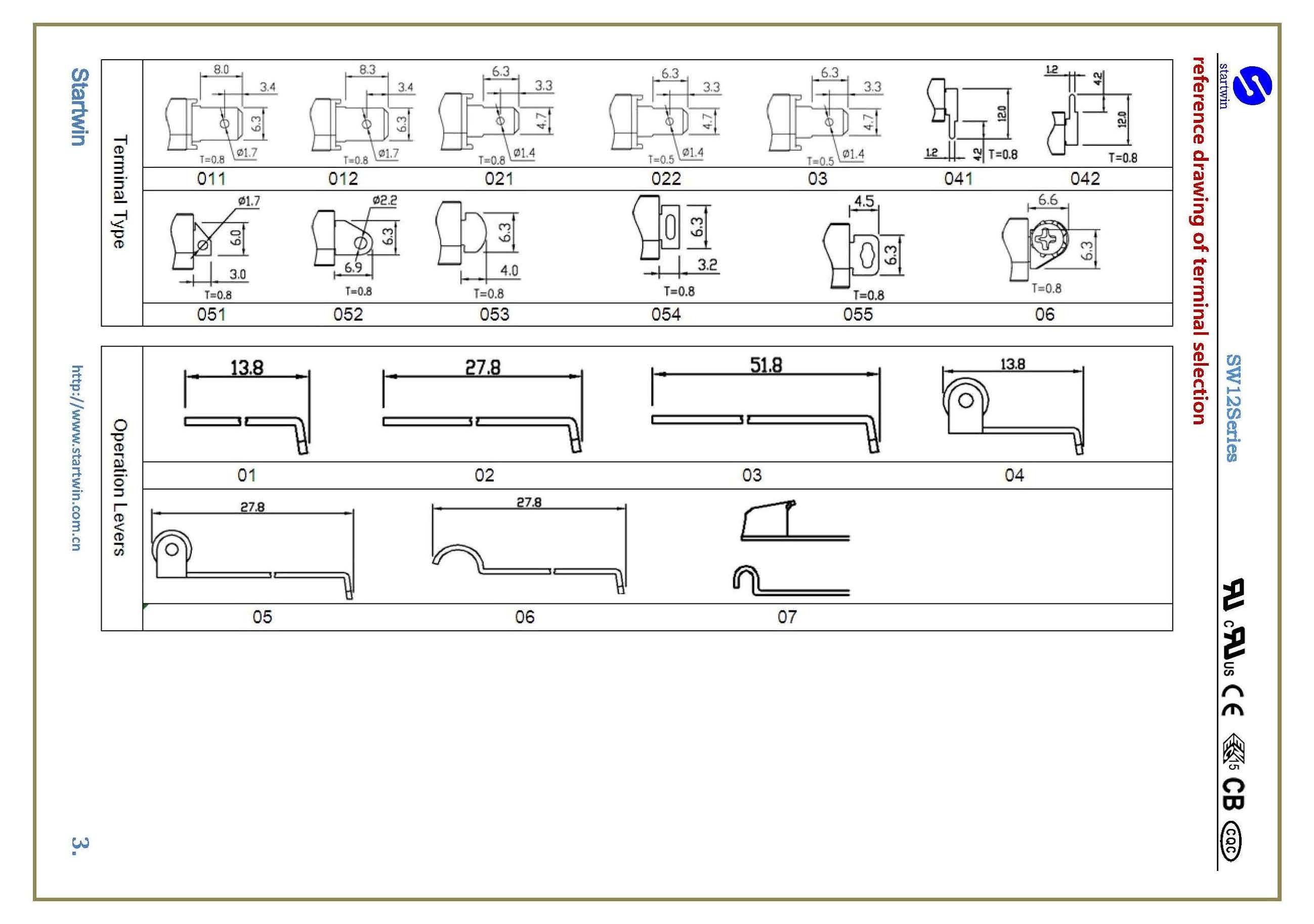

Reference drawing of terminal selection
